VFLOW-DWLR Ground Water Level Recorder Peizometer

Send Inquiry

Request To Call Back

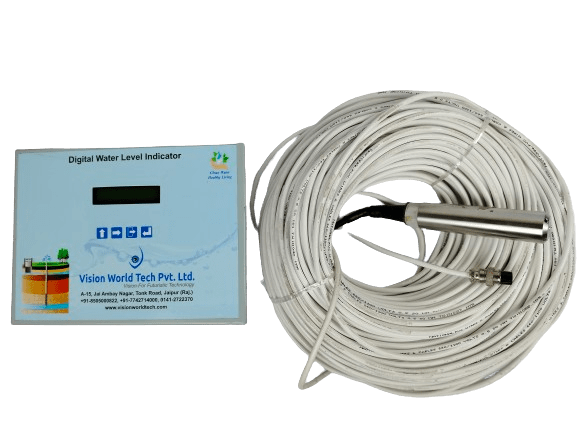

VFLOW-DWLR Ground Water Level Recorder Peizometer

Name: VFLOW-DWLR Ground Water Level Recorder Peizometer
Brand: VISION WORLD TECH PVT LTD
Price: 29999 INR
Availability: InStock

Price 29999 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

VFLOW-DWLR Ground Water Level Recorder Peizometer Specification

Output
RS485/USB/SD Card (Data Logging)

Pressure Range
0-10 bar

Connecting Type
Cable terminated

Application Media
Groundwater, Borewell, Observation Wells, Tube Wells

Storage Temperature
-20C to +70C

Stability
<0.1% per year

Capacity
Data storage up to 50,000 records

Process Connection
Direct Submersible Installation

Protection
IP68 (Sensor), IP65 (Enclosure)

Sensor Type
Submersible Hydrostatic Pressure Sensor

Color
Silver & Blue

Current Range
4-20 mA (optional analog output)

Connectivity Type
USB, RS485, SD card

Measuring Units
Meters, Feet, Centimeters

Equipment Type
Ground Water Level Recorder (Peizometer)

Language
English

Resolution
0.001 m

Temperature Range
-10C to +60C

Mounting
Suspended in borewell/well using cable

Signal Type
Digital

Measurement Range
0 to 100 m standard (other ranges available on request)

Length
Standard 100 m cable (other lengths available)

Humidity %
0-95% RH non-condensing

Operating Temperature
-10C to +60C

Diameter
40 mm

Dimension (L*W*H)
120 mm x 40 mm x 40 mm (Enclosure)

Response Time
<1 second

Material
Stainless Steel (Sensor), ABS (Enclosure)

Power Supply
12V DC, 5V DC via USB or solar panel (optional)

Power Consumption
<10 mA during measurement

Accuracy
0.05% F.S.

Display Type
Digital LCD with backlight

Range
0-100 m

Software Compatibility
Windows compatible software for configuration & download

Alarm Function
Programmable high/low alarm via software

Data Retrieval
Via USB/SD Card, RS485 communication

Real Time Clock
Integrated with battery backup

Battery Backup
Inbuilt rechargeable battery, up to 3 months standby

Cable Material
Teflon coated, heavy duty

Memory Type
Non-volatile

Data Logging Interval
Programmable, 1 sec to 24 hrs

Sensor Protection
Overvoltage and surge protection

Enclosure Type
Weatherproof for outdoor use

Compliance
CE, ISO certified

VFLOW-DWLR Ground Water Level Recorder Peizometer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Pieces Per Day

Delivery Time
6 Days

Sample Policy
Contact us for information regarding our sample policy

Main Domestic Market
All India

About VFLOW-DWLR Ground Water Level Recorder Peizometer

Pick Yours today-the VFLOW-DWLR Ground Water Level Recorder Peizometer defines top-tier reliability for ground water measurement. Engineered for glorious performance, it features a submersible stainless steel sensor, a heavy-duty Teflon-coated cable, and IP68/IP65 protection for sublime durability. With programmable data logging intervals, real-time USB/RS485/SD card retrieval, programmable alarms, and up to 50,000 record storage, it delivers unbeatable value and best price for professionals monitoring borewells, observation wells, or tube wells. Elevate your water level recording standards with CE and ISO-certified excellence.

VFLOW-DWLR Ground Water Level Recorder Peizometer: Features & Directions

The VFLOW-DWLR Ground Water Level Recorder Peizometer offers precise measurement with a high-resolution digital LCD, accuracy of 0.05% F.S., and programmable data intervals. It's used for continuous or periodic monitoring in groundwater, borewell, and tube well applications. Simply submerse the weatherproof unit using the durable cable and retrieve data via USB, RS485, or SD card. Perfect for hydrologists, environmentalists, and institutions requiring consistent and reliable level recordings.

Sample Policy & Export Markets: VFLOW-DWLR Ground Water Level Recorder Peizometer

Our sample policy ensures product quality can be verified before large orders, with competitive sale price for sample units. Products are delivered promptly and securely, typically handed over within a short delivery time after order confirmation. VFLOW-DWLR is available for export to major global markets, ensuring accessibility for clients worldwide seeking advanced groundwater solutions.

FAQ's of VFLOW-DWLR Ground Water Level Recorder Peizometer:

Q: How does the VFLOW-DWLR Ground Water Level Recorder Peizometer provide reliable measurement?

A: VFLOW-DWLR uses a submersible hydrostatic pressure sensor with 0.05% F.S. accuracy, digital LCD display, and programmable data logging to deliver precise and dependable ground water level readings.

Q: What is the process for retrieving data from the recorder?

A: You can retrieve data via USB, RS485 communication, or SD card. The device is also compatible with Windows software for easy configuration and quick data download.

Q: When should the battery be recharged for optimal use?

A: The inbuilt rechargeable battery provides up to three months of standby operation. Recharge the battery as indicated by the system or after extended continuous usage.

Q: Where can the peizometer be installed?

A: It is designed for direct submersible installation in ground water sources like borewells, observation wells, or tube wells, using the supplied heavy-duty Teflon-coated cable.

Q: What are the key benefits of choosing this recorder?

A: By selecting VFLOW-DWLR, you gain excellent durability, high-precision measurements, extensive data storage, programmable alarms, and robust weatherproof construction-all at optimal value and price.
