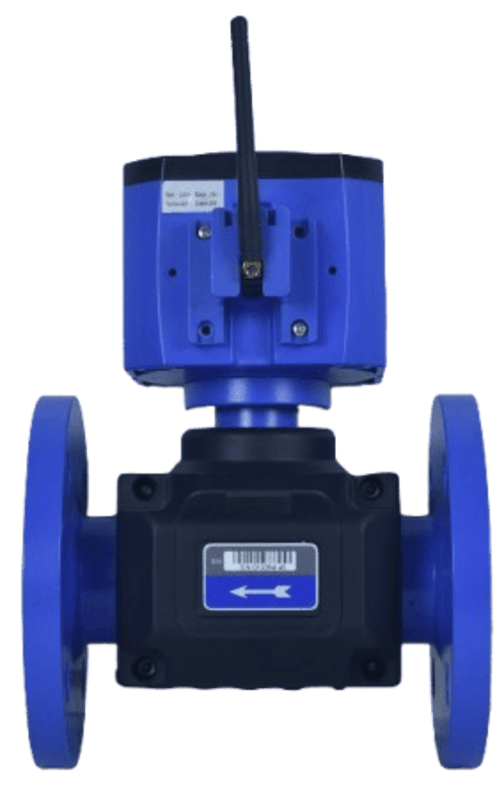

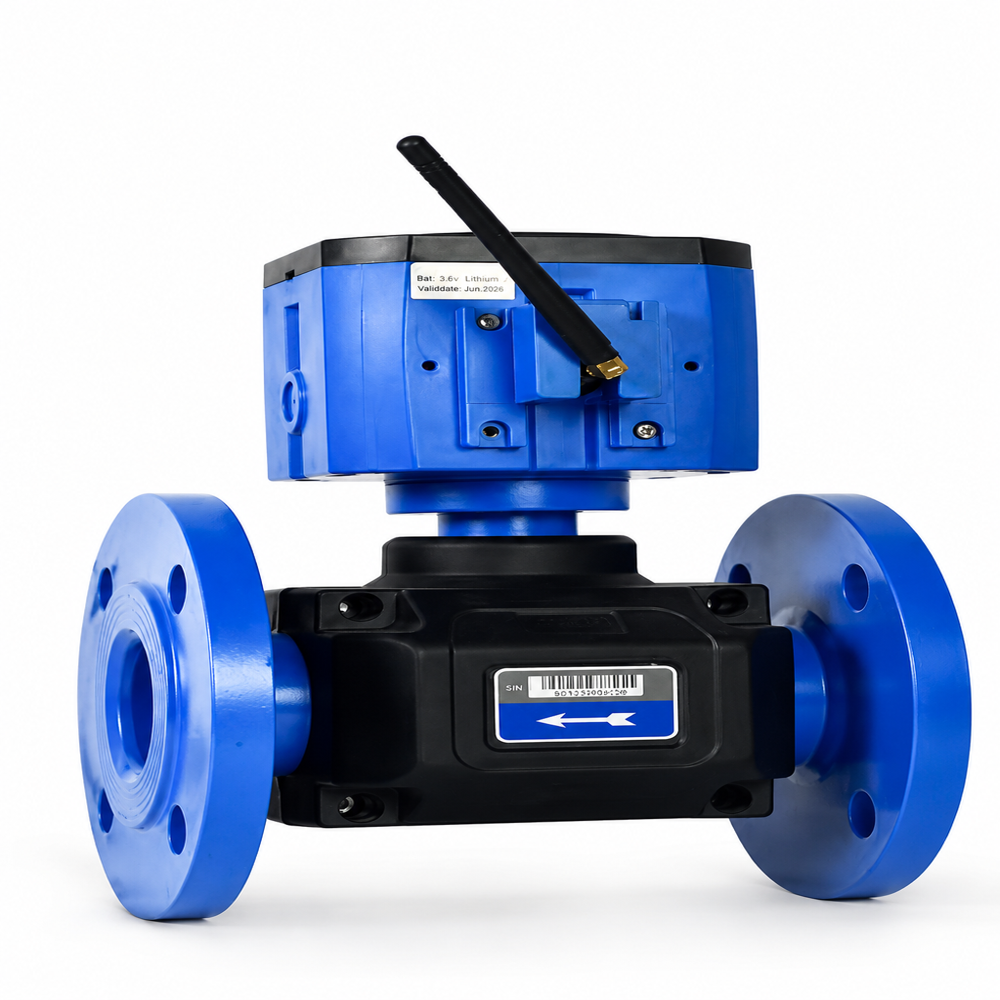

Battery Operated Ultrasonic Flowmeter

Name: Battery Operated Ultrasonic Flowmeter
Brand: VISION WORLD TECH PVT LTD
Price: 130000 INR
Availability: InStock

Price 130000 INR/ Number

Get a Price/Quote

Battery Operated Ultrasonic Flowmeter Specification

Measurement Range
DN15-DN6000mm

Humidity %
Up to 85% RH

Flow Rate
0.03 m/s ~ 5.0 m/s

Temperature Range
-30C to +80C Celsius (oC)

Sensor Type
Clamp-on/Insertion type ultrasonic sensor

Connectivity Type
Wireless/GSM/GPRS/RS485 (optional)

Pressure Range
Up to 1.6MPa

Equipment Type
Battery Operated Ultrasonic Flowmeter

Resolution
0.0001m/s

Material
ABS/Aluminum Alloy for transmitter; Stainless steel for transducers

Power Supply
3.6V Lithium battery (can work up to 6 years)

Power Consumption
<0.5W Watt (W)

Accuracy
1.0% of reading %

Display Type
LCD digital display with backlight

Range
0.03 m/s ~ 5.0 m/s

Pipe Wall Thickness
Up to 50mm

Pipe Material Compatibility
Steel, PVC, Copper, Cast Iron, Ductile Iron, etc.

Mounting
Clamp-on/Insertion/External type available

Functions
Bidirectional measurement, leak detection

Output Options
4-20mA, Pulse, Relay, RS485, Wireless (Optional)

Communication Protocols
Modbus, Optional GPRS/SMS

Installation
Non-invasive, no pipe cut required

Data Logger
Integrated, programmable interval

Flow Totalizer
Yes

Protection Class
IP65/IP67/IP68 (Based on model)

Language
Multi-language menu

Transducer Cable Length
Standard 5m (optional extension up to 50m)

Battery Operated Ultrasonic Flowmeter Trade Information

Minimum Order Quantity
2 Number

Supply Ability
1000 Per Month

Delivery Time
7 Days

Certifications
Technology Ultrasonic Non-Invasive (Clamp-on design, no pipe cutting, no pressure loss) Telemetry Integrated GSM telemetry real-time data to cloud dashboards with 4G Band Ambient Temperature Range +5 C to +55 C. Accuracy 1% accuracy across a wide flow range Installation orientation Horizontal & vertical (upward direction) Pressure range 0.03 MPa to 1.6 MPa Meter Temperature Class T50 Power supply Battery operated up to 3 years and customizable ` Protection class IP68 Power consumption Standard status < 30uA, can work continuously for more than 20 years. Applications Remote locations, smart utilities, hard-to-access installations

About Battery Operated Ultrasonic Flowmeter

Applications

Water Supply Networks
Wastewater Treatment Plants
Irrigation Systems
District Metering Areas (DMA)
Industrial Utilities.
Energy & HVAC Systems.

Ambient Temperature Range	+5 C to +55 C.
Accuracy	1% accuracy across a wide flow range
Installation orientation	Horizontal & vertical (upward direction)
Power consumption	Standard status < 30uA, can work continuously for more than 20 years

Advanced Non-Invasive Measurement

The flowmeters clamp-on and insertion design means it can be installed externally with no need to cut pipes or halt processes. This ensures quick setup and minimizes downtime, making it ideal for retrofitting and projects where operational continuity is essential. Compatibility with multiple pipe materials and thicknesses adds further flexibility, simplifying installation across various field conditions.

Comprehensive Data and Connectivity

Integrated data logging with programmable intervals and storage capacity for up to 90,000 data lines supports detailed flow analysis over time. Output options such as wireless, RS485, GSM/GPRS, and Modbus protocol allow for seamless integration with existing monitoring systems. This enables remote access, centralized data management, and efficient monitoring, even in challenging locations.

Reliable Performance and Durability

Designed to operate in extreme environmentsincluding temperatures from -30C to +80C and pressures up to 1.6MPathe flowmeter offers high accuracy (1.0%) and low power consumption (<0.5W). Multiple protection class options (IP65/IP67/IP68) ensure resilience against dust and water ingress, making these flowmeters suitable for demanding industrial settings.

FAQs of Battery Operated Ultrasonic Flowmeter:

Q: How is the Battery Operated Ultrasonic Flowmeter installed on existing pipelines?

A: The flowmeter utilizes a clamp-on or insertion-type ultrasonic sensor that mounts externally onto the pipe surface, requiring no pipe cutting or system shutdown. Installers simply fasten the sensor to the pipe using provided brackets, enter pipe parameters, and begin measurement.

Q: What types of pipes are compatible with this flowmeter?

A: It is suitable for measuring flow in steel, PVC, copper, cast iron, ductile iron, and other common pipe materials, supporting wall thickness up to 50mm and outer diameters from DN15 to DN6000mm.

Q: When should a non-invasive ultrasonic flowmeter be used?

A: Non-invasive flowmeters are ideal when interruption of flow or pipe modification is impractical, such as in continuous process industries, water utilities, and retrofit installations requiring minimal disruption.

Q: Where can the flowmeters data be accessed and monitored?

A: Flow data can be accessed locally via the LCD digital display, or remotely through wireless, RS485, GSM/GPRS, and Modbus protocol integrations, allowing for seamless connection to SCADA or remote monitoring systems.

Q: What processes or functions does the flowmeter offer beyond flow measurement?

A: Alongside precise flow measurement, the unit delivers bidirectional flow monitoring, leak detection features, and detailed data logging for long-term system analysis and troubleshooting.

Q: How does the flowmeter benefit industrial users?

A: Users gain reliable, accurate measurement with up to 6 years of battery life and flexible installation. Its robust data logger and multi-protocol connectivity enable informed decision-making and process optimization, ideal for water management, oil & gas, HVAC, and chemical industries.

Q: What maintenance is required for this ultrasonic flowmeter?

A: Routine checks for physical sensor integrity and occasional battery replacement (after several years) are recommended. The non-invasive design minimizes servicing needs and eliminates internal pipe cleaning or calibration downtime.
