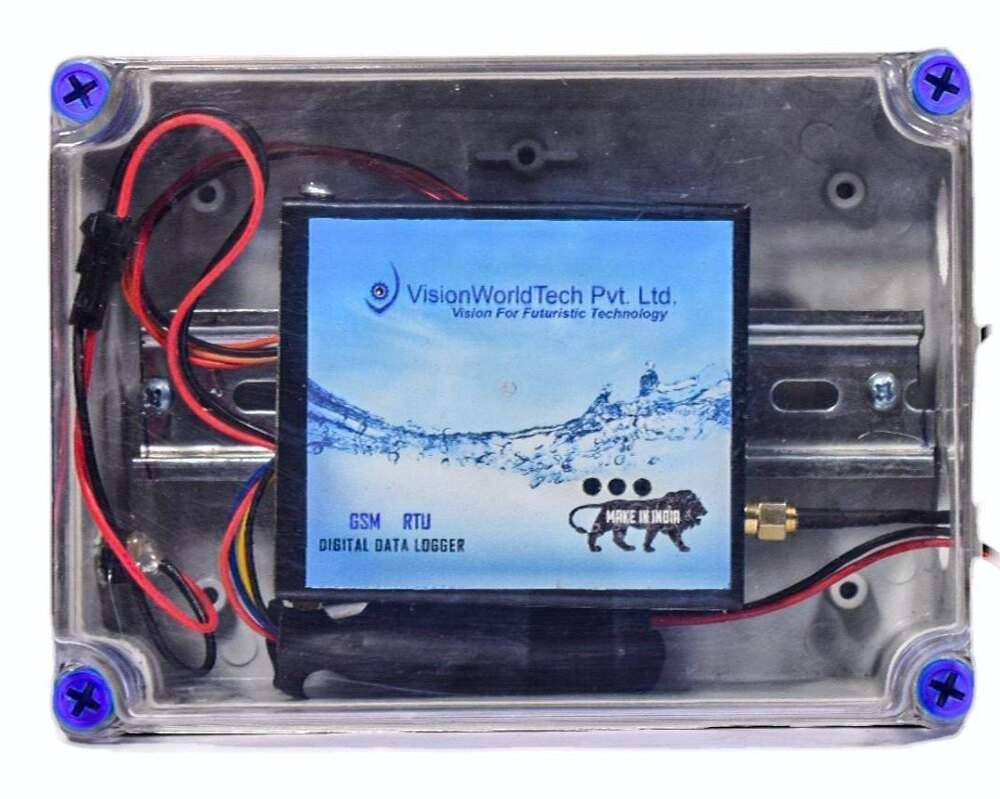

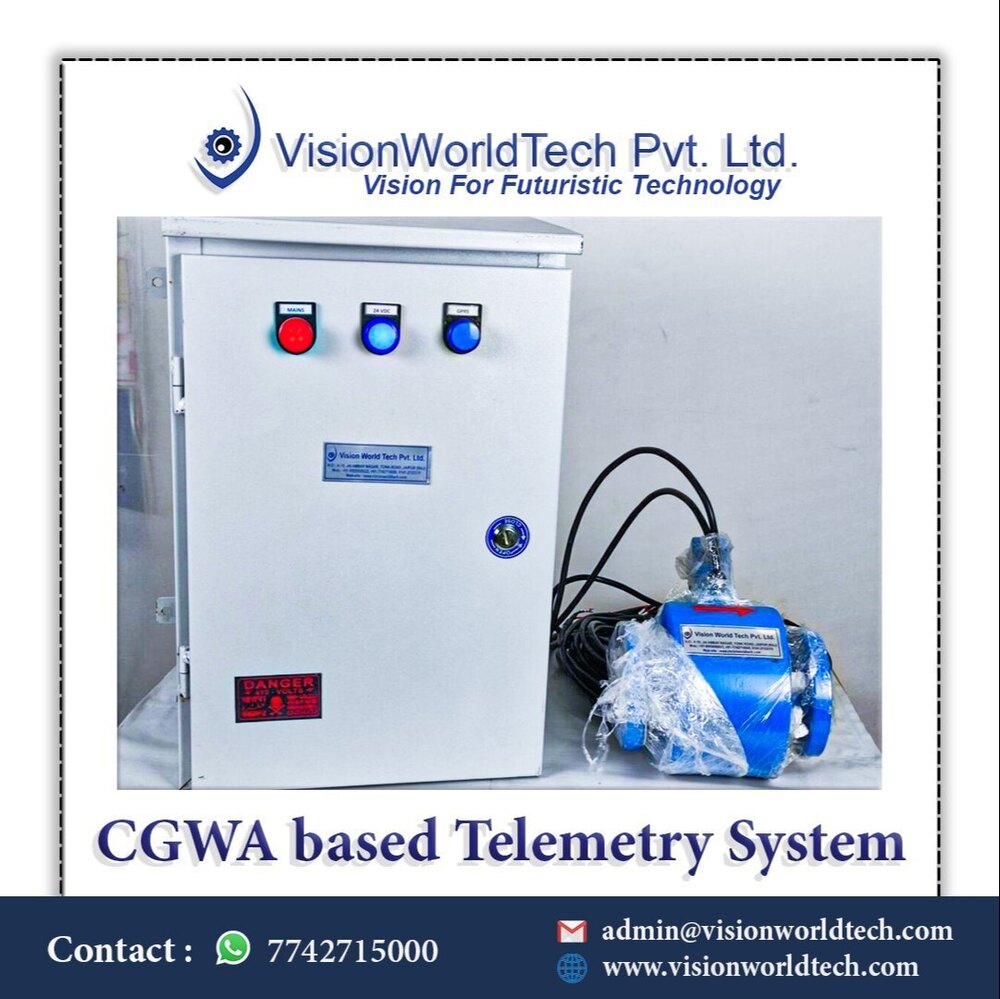

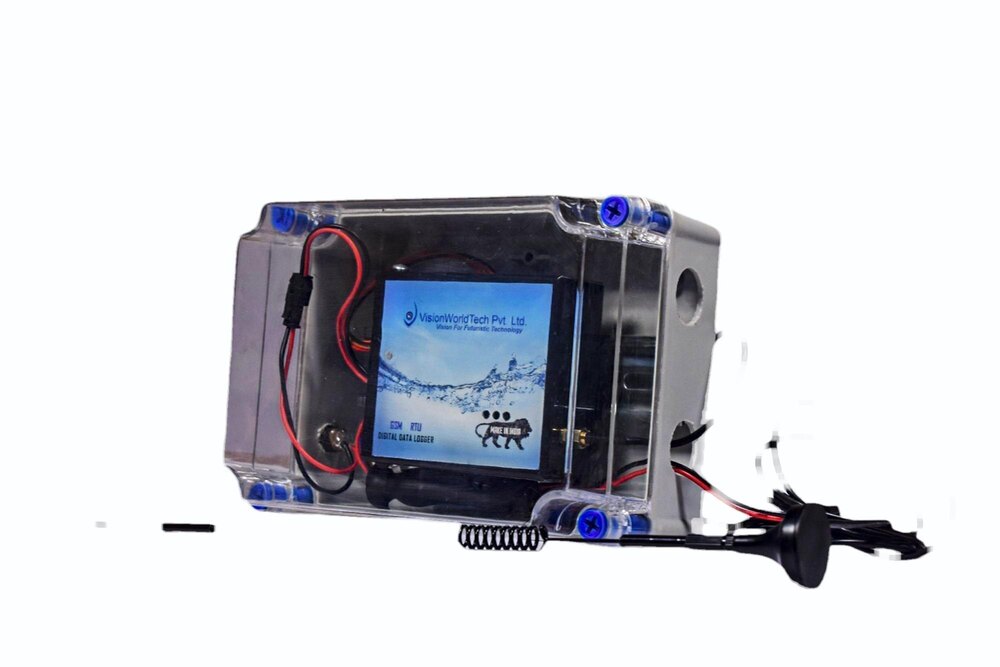

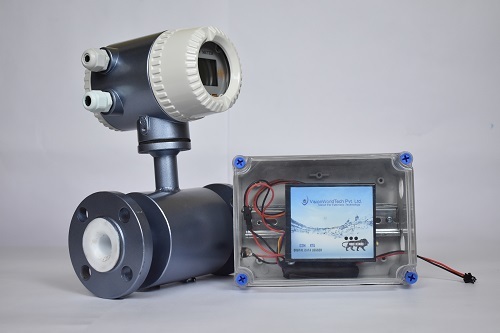

Telemetry System

About Telemetry System

The Telemetry System is a powerful device that is designed to provide a higher level of accuracy in monitoring various parameters. The device is built with strong and durable materials such as stainless steel and plastic, making it long-lasting and reliable. The GSM QUADBAND (850,900,1800,1900 MHZ) size makes it compatible with a wide range of devices. The device runs on electric power and uses a USB cable for data transmission. The condition of the device is new, and its portability makes it easy to carry around. The display type is color, which makes it easy to read and interpret the results. The Telemetry Monitoring System is a high-quality product that is perfect for monitoring various parameters in different applications.

Model	VIFLOW-TM
Support	2G/4G
GSM Quad Band	850,900,1800,1900 MHZ
Communication Protocol	RS485 (Modbus RTU/ASCII) /0 ï 10 VDC
Supported Sensors	Any sensor with RS485 output (e.g., flow meters, pressure sensors, temperature sensors, etc.)
Data Rate	Hybrid, Analog, DigitalConfigurable: 9600 bps, 19200 bps, 38400 bps, etc.
Power Supply	12V/24V DC or 230V AC (with inbuilt SMPS) / Battery
Interfaces	USB and optional GSM/GPRS for remote access
Protocol Support	Modbus RTU & HTTP
Environmental Protection	IP65 Enclosure for harsh environments
Operating Temperature	-20C to 70C
Humidity	10% to 90% RH (non-condensing)
Mounting Options	Wall-mounted, DIN rail-mounted
Alarm Notifications	Email, or On-screen alerts
Data Transmission	Remote server, or cloud-based via telemetry
Software Interface	Web based software for configuration and monitoring
Certifications	ISO 9001:2015, CE Certified
SIM Support	VI/JIO/Airtel
