Product Description
| Diameter Flange Type DN10 DN500 |
| Lining Material PolytetrafluoroethlenePTFE Polyurethane Rubber PU Natural Rubber NR |
| Measured Pipe Stainless Steel |
| Power Supply 100V AC 240V AC 12V DC 24V DC |
| Output Signal Pulse Output RS485 420mA |
| Environmental Temp 20 C 60 C |
| Rated Pressure Customizable 20Bar 20Bar by default |

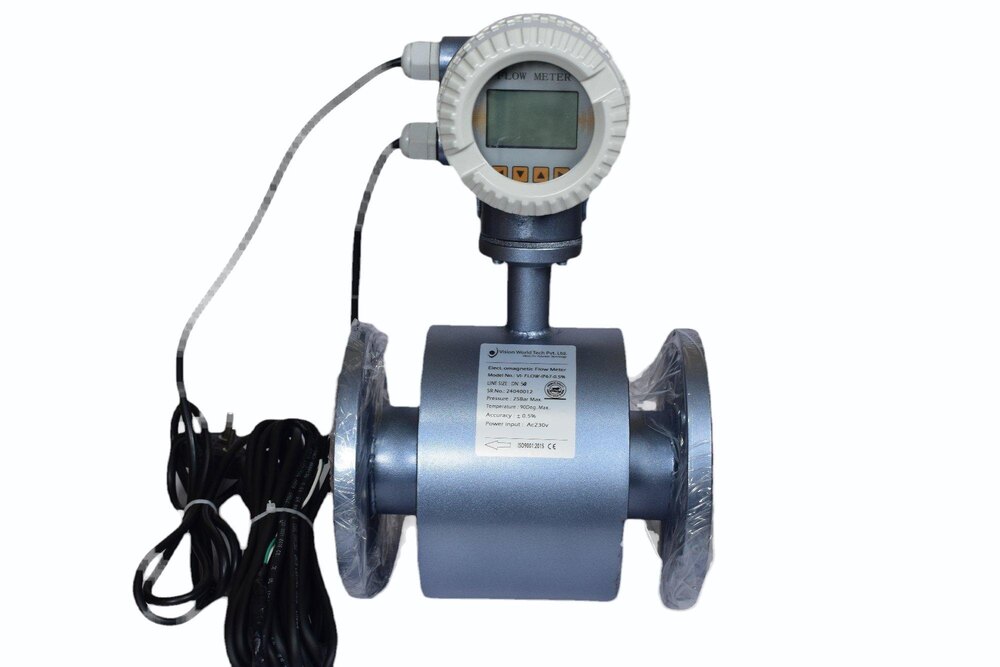

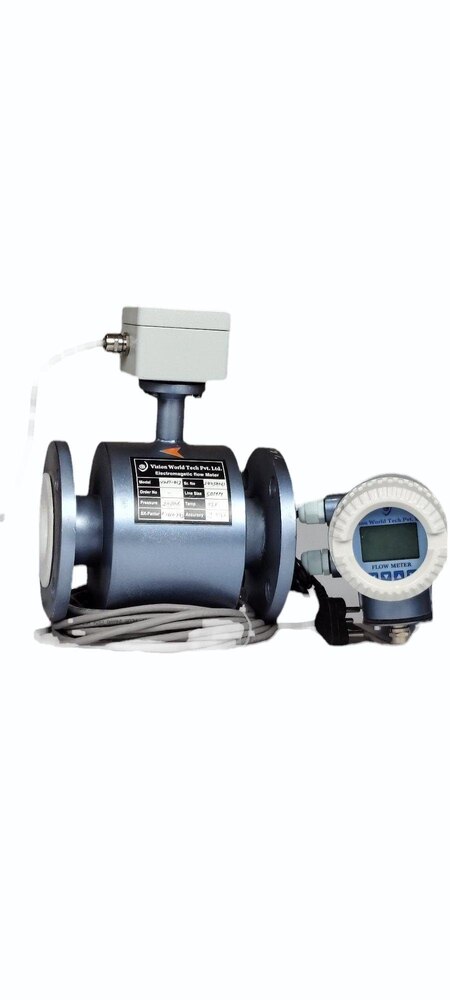

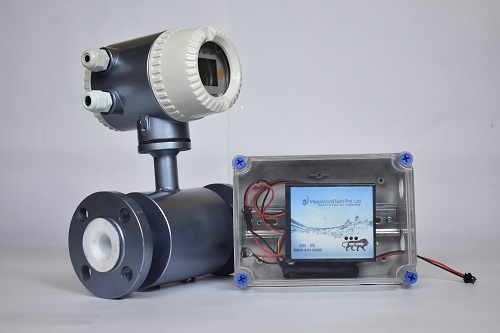

Versatile Design for Multiple ApplicationsThe VIFLOW-MAG-013 Mag Flow Meter is engineered to handle a diverse array of conductive liquids in applications such as water treatment, wastewater management, and process industries. Its flanged connections, compatibility with both ANSI and DIN/BS standards, and multiple size options make it a practical solution for different installation requirements.
Advanced Display and Output OptionsOffering both digital and analog displays, the flow meter caters to varied user preferences and system integrations. It provides real-time measurement data in units such as m3/hr, LPM, LPH, and GPM, alongside output signals like 4-20 mA, pulse, and RS485 Modbus, ensuring comprehensive monitoring and control capabilities.
Precision and ReliabilityWith an accuracy of 0.5%, fast response times (0.1-10 seconds), and high stability (0.1%), the VIFLOW-MAG-013 ensures reliable readings critical for process optimization and regulatory compliance. It operates efficiently across broad temperature and pressure ranges, making it suitable for demanding industrial settings.

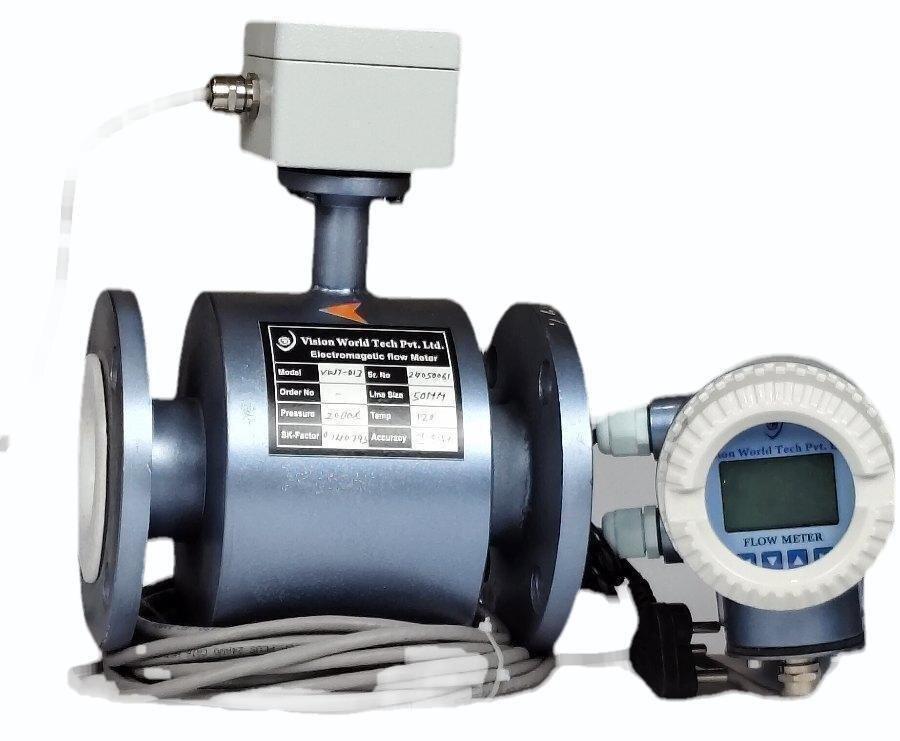

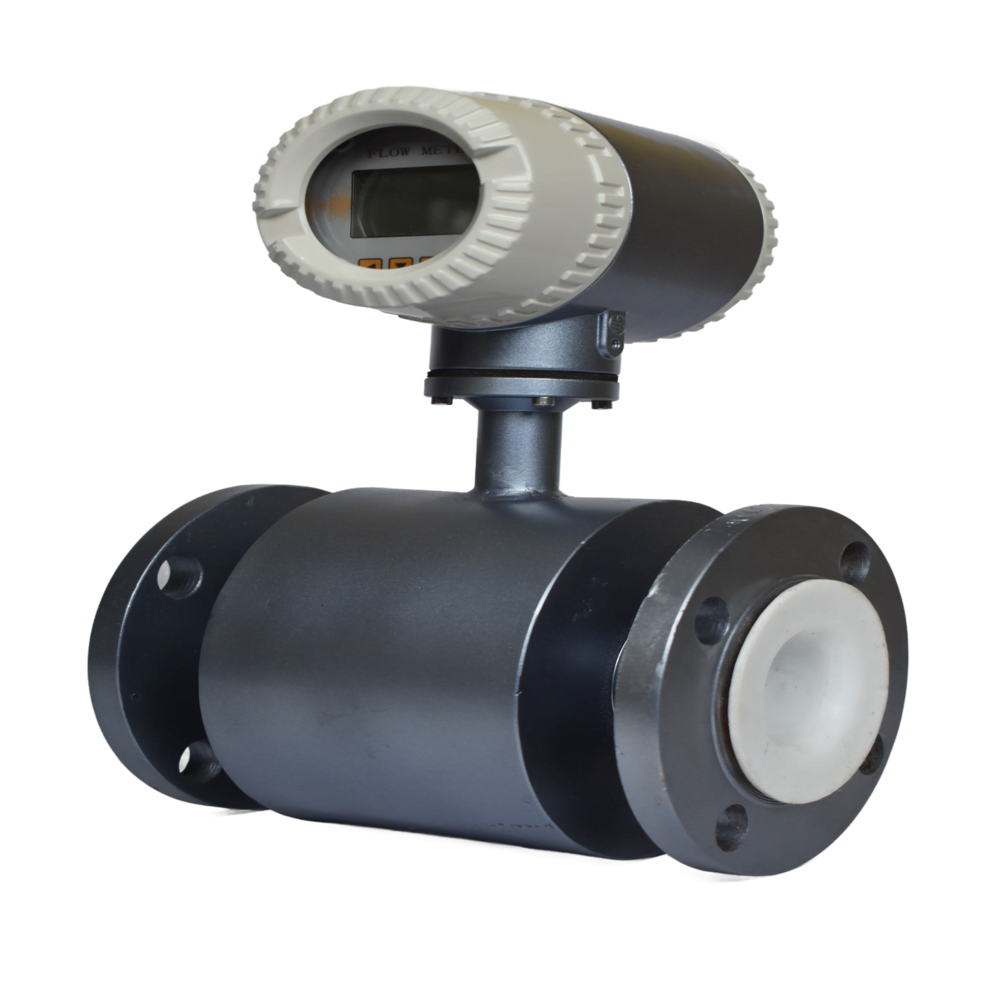

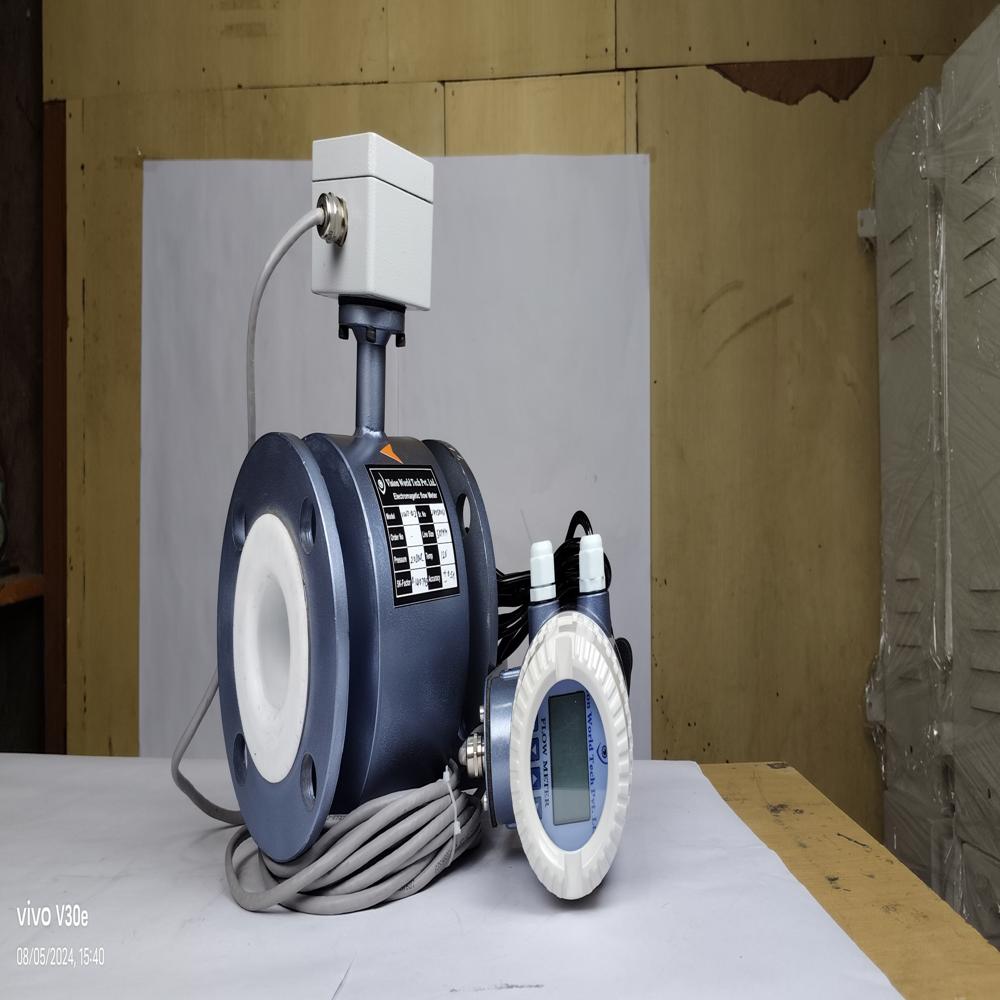

FAQ's of All Sizes of Mag Flow Meter 1inch, 2inch, 3inch:
Q: How do you install the VIFLOW-MAG-013 flow meter?
A: The VIFLOW-MAG-013 offers easy inline mounting with flanged connections compatible with ANSI, DIN, or BS standards. The device should be installed in a location that ensures full pipe flow, and electrical connections must follow the provided guidelines to guarantee proper functionality.
Q: What is the process for measuring flow with this mag flow meter?
A: The electromagnetic sensor measures the velocity of conductive liquids passing through the pipe. It then calculates the flow rate, which is displayed digitally or via analog outputs, allowing for real-time monitoring, recording, and control of flow within the specified measurement range.
Q: Where can the VIFLOW-MAG-013 be used most effectively?
A: This flow meter is primarily used in industrial and municipal settings, including water treatment plants, effluent monitoring stations, and wastewater management facilities where precise flow monitoring of conductive liquids is essential.
Q: What are the main benefits of using a digital or analog display type?
A: A digital display provides instant, easy-to-read measurement data, aiding quick decision-making and remote monitoring, while an analog display enables straightforward integration with traditional control panels. Both types support an efficient process management strategy.
Q: When should I select SS316 or Carbon Steel material for the body?
A: Choose SS316 for applications involving corrosive fluids or harsh environments due to its superior corrosion resistance. Carbon steel is suitable for general water and wastewater processes where corrosion risk is lower.
Q: What maintenance is required to ensure continued accuracy?
A: Routine maintenance involves periodic cleaning of the sensor and verifying calibration. The meter's robust construction makes maintenance minimal, but regular checks will guarantee consistent accuracy and prolonged service lifespan.
Q: How does the VIFLOW-MAG-013 enhance process efficiency?
A: By delivering accurate flow measurements, quick response times, and reliable outputs under varying operational conditions, the VIFLOW-MAG-013 streamlines process monitoring and control. This leads to optimized resource usage, reduced downtime, and improved compliance with environmental and industrial standards.
